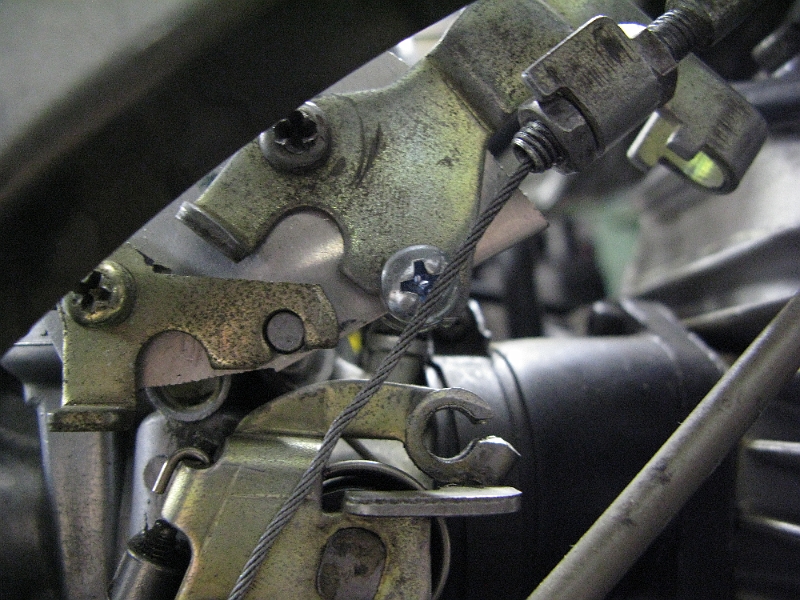

  IMG_0123.JPG - Good shot of the adapter for the cable routing. Moved up and forward and tilted down Retains stock SRX cables. The extra piece of an original bracket on the lower left is to a) use the little locator peg sticking off the carb and b) put a throttle stop in the right place. That's the bit that sticks out of the picture toward the viewer.
